DAYAWOOL
Description

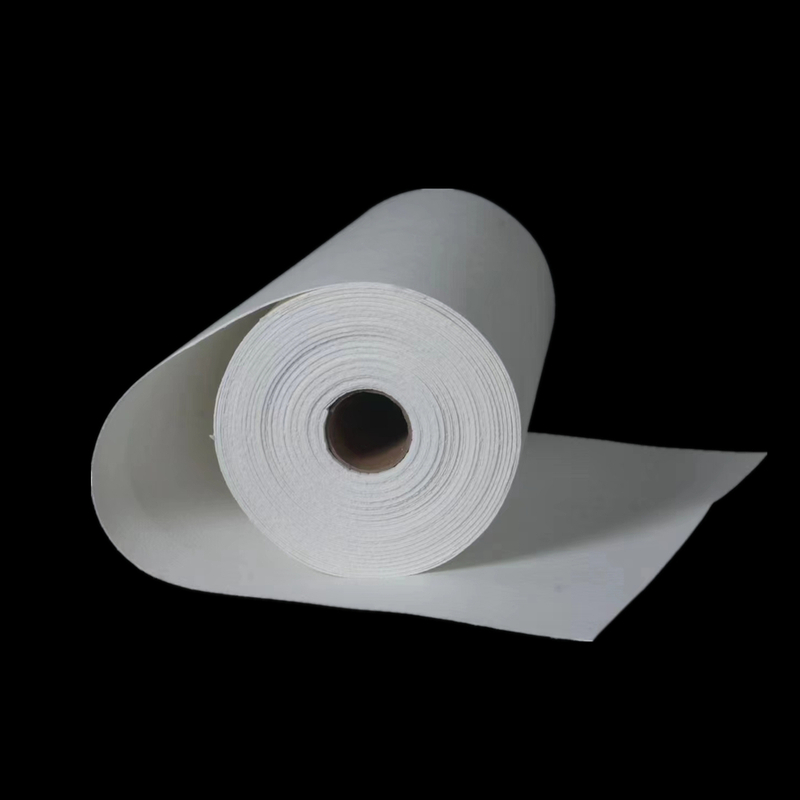

Blending with high quality alumina-silica fibers and binders, additives , the ceramic fiber paper is proved to be a flexible and uniform sheet in handling heat treatment. Some advantages including low shrinkage, good strength, and low thermal conductivity contribute to wide applications of the paper. Our paper has a highly uniform structure due to its well-controlled weight and thickness, assuring homogeneous thermal conductivity and a clean, smooth surface , and that's the reason why paper can be an ideal for gasket or sealing. DAYAWOOL ceramic fiber paper is completely free of asbestos and is designed to be an economic replacement for asbestos paper in most applications. Ceramic fiber paper is easy to be handled and cut, and its flexibility allows it to be wrapped or rolled for better storage.
Features
Easily handled and engineered
Low thermal conductivity
Good Resilience
Resistance to thermal shock and flame
Superior dielectric strength
Typical Applications
Asbestos paper replacement
Investment cast mold wrap insulation
One-time consumable insulating applications
Back-up lining for metal troughs
Hot top lining
Thermal and electrical insulation
Typical Parameters
DAYAWOOL® CERAMIC FIBER PAPER | 1260-PAPER | 1430-PAPER | |
Tensile Strength (MPa) | ≥0.4 | ≥0.7 | |
Density (kg/m3) | 200 | 200 | |
Water Content (%) | ≤1 | ≤1 | |
Organic Content (%) | ≤10 | ≤6 | |
Chemical Analysis (%) | Al₂O₃ | 42-47 | 44-50 |
SiO₂ | 52-57 | 49-55 | |
Thermal Conductivity (W/mK) | 200℃ | 0.06 | 0.06 |
400℃ | 0.09 | 0.08 | |
600℃ | 0.13 | 0.13 | |
800℃ | 0.20 | 0.19 | |
1000℃ | –– | 0.29 | |
1200℃ | –– | 0.43 |
Description
Blending with high quality alumina-silica fibers and binders, additives , the ceramic fiber paper is proved to be a flexible and uniform sheet in handling heat treatment. Some advantages including low shrinkage, good strength, and low thermal conductivity contribute to wide applications of the paper. Our paper has a highly uniform structure due to its well-controlled weight and thickness, assuring homogeneous thermal conductivity and a clean, smooth surface , and that's the reason why paper can be an ideal for gasket or sealing. DAYAWOOL ceramic fiber paper is completely free of asbestos and is designed to be an economic replacement for asbestos paper in most applications. Ceramic fiber paper is easy to be handled and cut, and its flexibility allows it to be wrapped or rolled for better storage.
Features
Easily handled and engineered
Low thermal conductivity
Good Resilience
Resistance to thermal shock and flame
Superior dielectric strength
Typical Applications
Asbestos paper replacement
Investment cast mold wrap insulation
One-time consumable insulating applications
Back-up lining for metal troughs
Hot top lining
Thermal and electrical insulation
Typical Parameters
DAYAWOOL® CERAMIC FIBER PAPER | 1260-PAPER | 1430-PAPER | |
Tensile Strength (MPa) | ≥0.4 | ≥0.7 | |
Density (kg/m3) | 200 | 200 | |
Water Content (%) | ≤1 | ≤1 | |
Organic Content (%) | ≤10 | ≤6 | |
Chemical Analysis (%) | Al₂O₃ | 42-47 | 44-50 |
SiO₂ | 52-57 | 49-55 | |
Thermal Conductivity (W/mK) | 200℃ | 0.06 | 0.06 |
400℃ | 0.09 | 0.08 | |
600℃ | 0.13 | 0.13 | |
800℃ | 0.20 | 0.19 | |
1000℃ | –– | 0.29 | |
1200℃ | –– | 0.43 |
