Descriptions

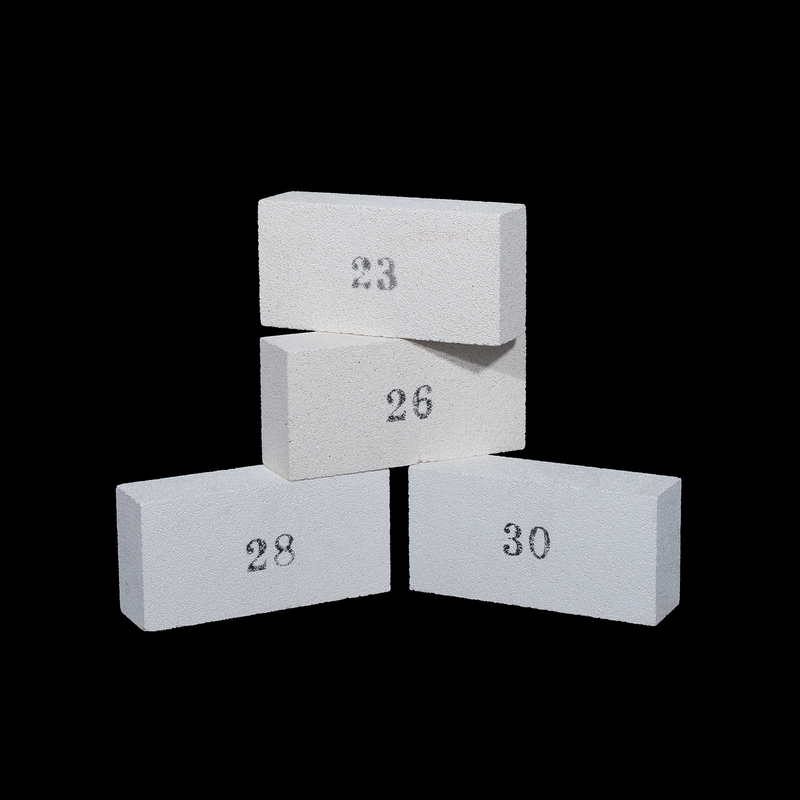

Mullite insulating firebrick gains typical advantages including low thermal conductivity, fine thermal shock resistance, low heat containment and low iron content, meanwhile, the outstanding mechanical flexibility, coupled with high insulating efficiency expands the extensive applications of IFB in a variety of industrial markets. Our insulating firebrick is manufactured from high-grade refractory powder and materials in good purity. During the process of production, organic and multiple filling materials are injected according to the required proportion, the brick is compressed in vacuum and sintered under high temperature.
Features
Low thermal conductivity
High purity and low iron content
Good thermal resistance with direct access to fire
Superior thermal shock resistance
Accurate dimension and easy cutting
Typical Applications
Cracking Furnace
Conversion Furnace
Heating equipment
Refining equipment
Reproduction equipment
Hot Blast Stove
Typical Parameters
DAYA INSULATING BRICKS | MIB-23 | MIB-26 | MIB-28 | MIB-30 | |
Classification Temperature (℃) | 1300 | 1400 | 1500 | 1550 | |
Chemical Analysis(%) | Al₂O₃ | 40 | 56 | 67 | 73 |
SiO2 | 51 | 41 | 30 | 24 | |
Fe₂O₃ | ≤1.0 | ≤0.8 | ≤0.7 | ≤0.6 | |
Density (kg/m³) | 600 | 800 | 900 | 1000 | |
Modulus of Rupture (MPa) | 0.9 | 1.5 | 1.8 | 2.0 | |
Cold Crushing Strength (MPa) | 1.2 | 2.4 | 2.6 | 3.0 | |
Permanent Linear Change (%) | 1230℃*24H≤0.3 | 1400℃*24H≤0.6 | 1510℃*24H≤0.7 | 1620℃*24H≤0.9 | |
Thermal Conductivity (W/mK) | 200℃ | 0.15 | 0.23 | 0.27 | 0.28 |
350℃ | 0.18 | 0.24 | 0.30 | 0.35 | |
400℃ | 0.19 | 0.25 | 0.33 | 0.38 | |
600℃ | 0.23 | 0.27 | 0.38 | 0.40 | |
